How to execute the Function Block Network diagrams

Open the project corfutest under the directory corfu\projects that is created during setup.

Open the diagram fbdiagram3.fbn

Press the button Execute and then the button Start.

The window of events will appear as shown in the following picture. Click on any image to enlarge.

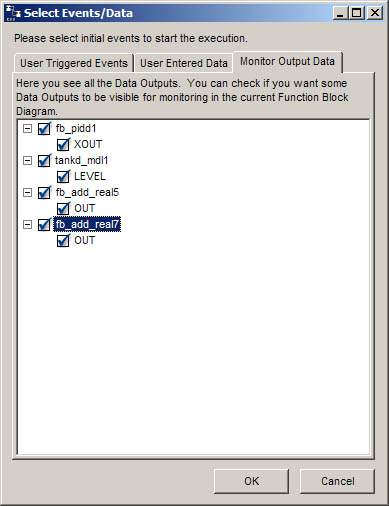

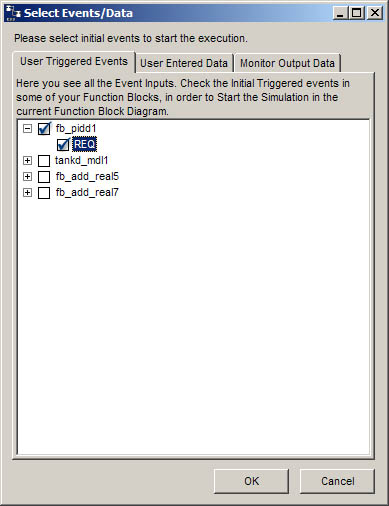

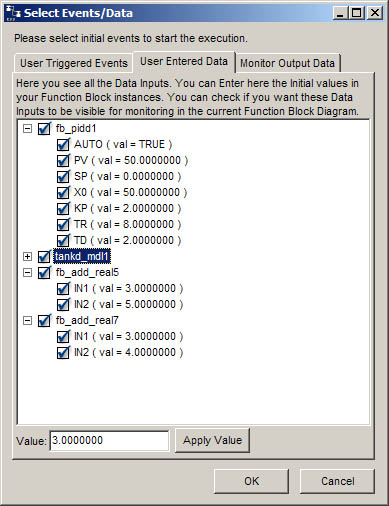

Mark through this screnn the events that you want to be triggered when you will start the execution	Mark through this screen the data inputs you want to monitor during the execution and define their initial values.	Mark through this screen the data outputs you want to monitor

After pressing the OK button the execution Starts.

Under each Function Block is displayed information about its State, Condition and Internal values.

Note: You can open the window with the monitoring values during execution, in order to change values to Data Inputs.
